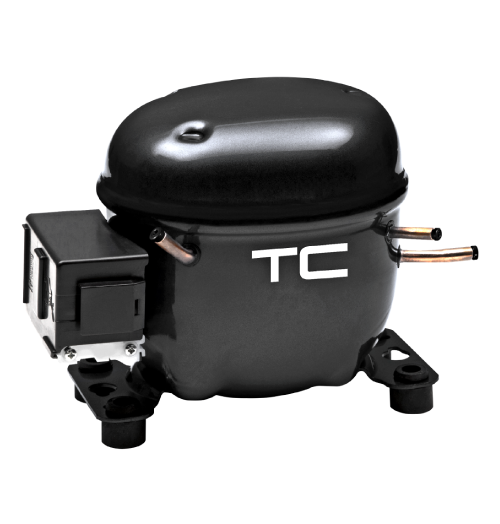

Tecumseh

Compressor > TC

TC

Product Description

Developed for low (LBP), low-medium (L/MBP) and medium-high (M/HBP) temperature applications
Product covers a capacity range from 300 to 1,500 Btu/h (for LBP and L/MBP) and from 2,000 to4,000 Btu/h (for M/HBP)

Refrigerant: R-290, R-134a and R-600a
Voltage : FZ (220-240V50Hz~1) DS (115-127V60Hz~1) GS (220V50-60Hz~1) LS (115V60Hz~1) ES (220V60Hz~1)

Features & Benefits

Suction and discharge systems combined with new motors
and refrigerant fluid handling improved compressor efficiency
Up to 15% lower in height when compared to comparable
compressor offerings
Designed for optimum performance with "green" hydrocarbon
refrigerant R-600a and R-290

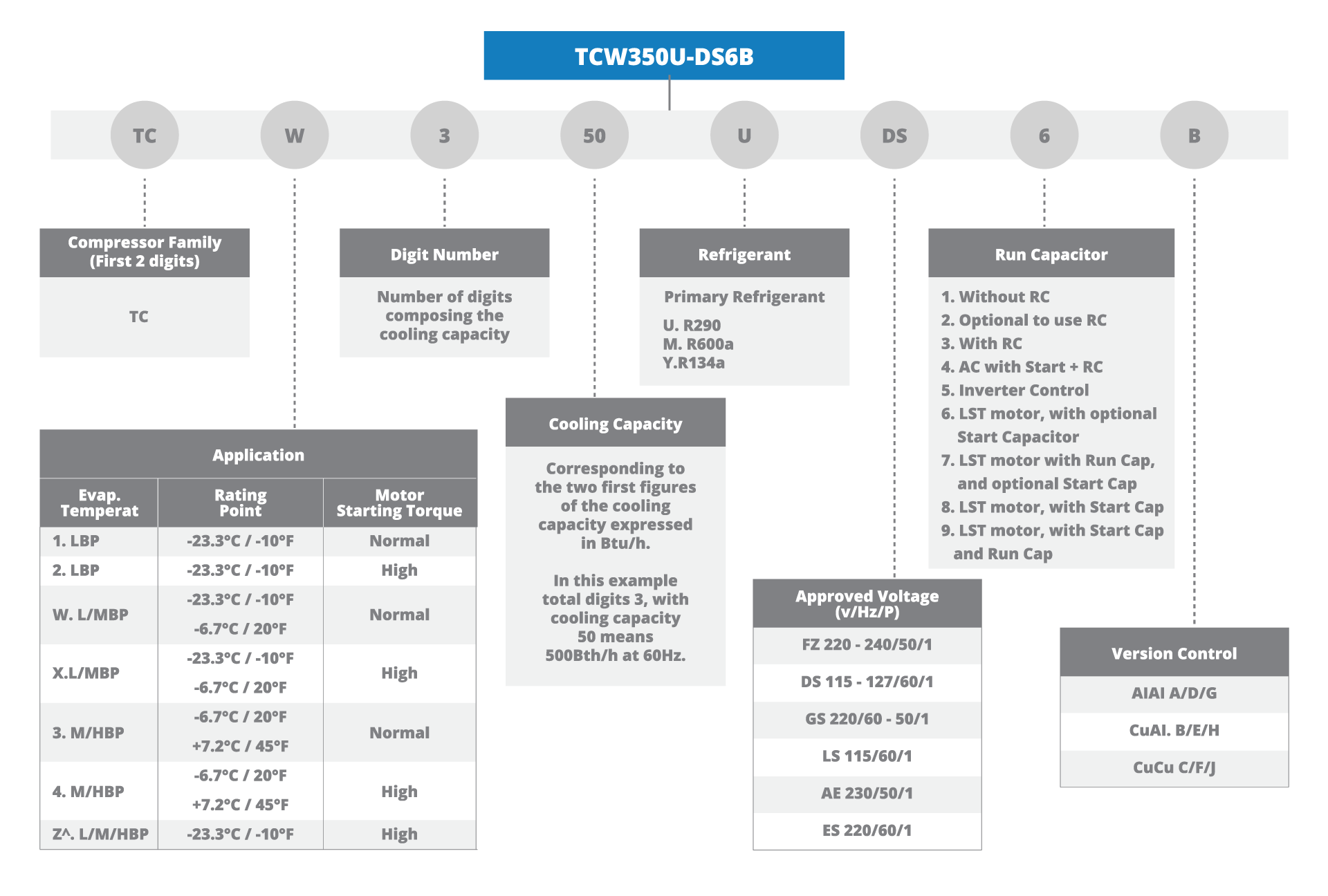

TC Nomenclature

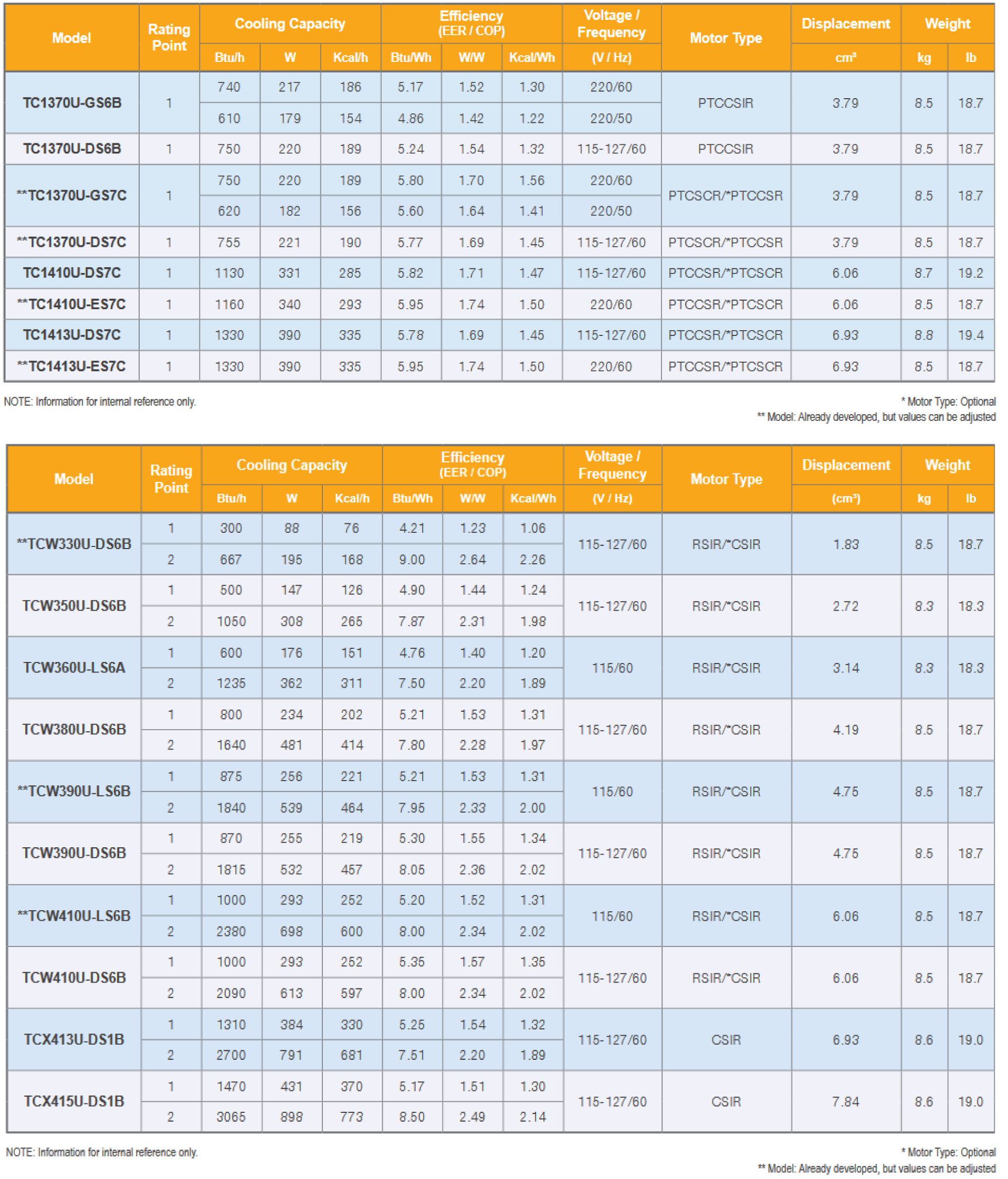

Models and Performance Data

Product Video
