Cooling for a Better Tomorrow!

Compressor > TA²

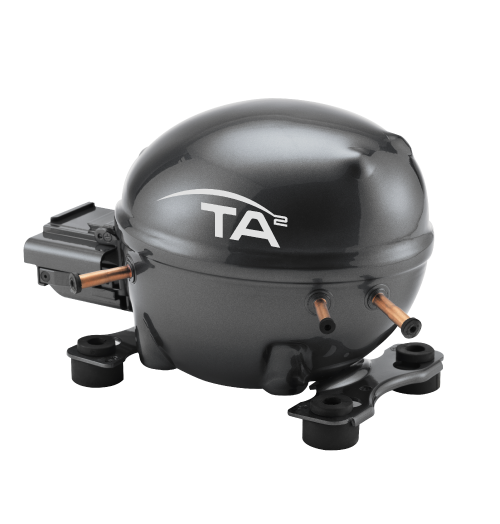

TA²

Product Description

Developed for household refrigerator and freezer(R&F).

Product covers a capacity range from 300 to 800 Btu/h
Refrigerant : R-134a and R-600a
Voltage : FZ (220-240V50Hz~1) DS (115-127V 60Hz~1) GS (220V50-60Hz~1)LS (115V60Hz~1)


  • New valve plate, shookloop and refrigerant gas handling
    results in improved compressor efficiency
  • Redesigned housing decreases the compressor height
  • New suction muffler and rounded asymmetric housing combine
    to deliver significant improvements in sound quality
1

TA
2

1
3

3
4

60
5

Y
6

DS
7

1
8

H

1. Family Compressor Family
2. Application 1 = Normal starting torque low temperature application, 2 = High starting torque low temperature application
3. Capacity Number of digits of Cooling Capacity
4. Capacity First two digits in Rating Point Capacity at 60Hz
5. Refrigerant M = R-600a, Y = R-134a
6. Voltage Refer table
7. Run capacitor 1. Without Run Capacitor 2. Optional to use Run Capacitor 3. With Run Capacitor
8. Vision Control G = AIAI, H = CuAI, J = CuCu
