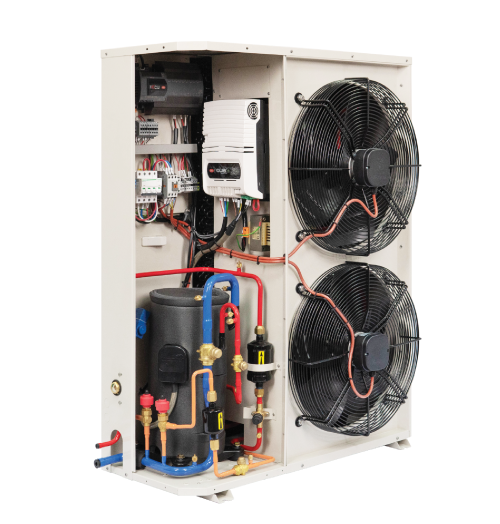

PAC³ with Intellicool

Product Description

Developed for medium commercial Multi-Split and
Single Evaporator application.

Product ranged from 1.7 to 25.7 kW (HMBP)
Refrigerant : R-404A
Voltage : (380-414V/50Hz~3Phase)
Frequency : 50Hz


  • Quick and easy to install and commission
  • Smooth line temperature control resulting long shalf life of product.
  • Maximised COP to mininimise Opewrating cost.
  • Modulation of cooling capacity with BLDC compressor and control by Inverter.
  • Management speed of EC condenser fans.
  • Floating suction and Condenser pressure set point.
  • Advanced algorithm for calibrated oil injection to compressor.
  • Advance algorithm for calibrated liquid injection to compressor.
  • Compressor speed boost for oil return.
  • Suction and discharge superheat control.
  • Serial comunication between Outdoor, controller and unit cooler.
  • Alarms and Error Signal if comunication lost.
  • RS485 Modbus serial connection for Remote monitoring.
1

PAC
2

33
3

Z
4

H

1. Family Condensing Unit Family
2. Compressor Disp. cc/Rev
3. Refrigerant R404A
4. High back pressure application.
