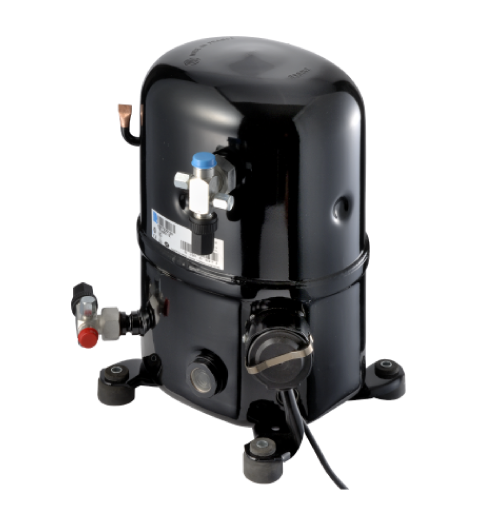

Leverage on Tecumseh 's robust design, attributing 40 years of commercial refrigeration experiences. Available across the globe, with flexibility to meet regional needs and agency approvals.Developed for high and low temperature commercial application.
Product ranged from 1.5 to 3.35 Horsepower.
Refrigerant: R404A/R507 R134a R22 R407C
Voltage: HZ(208-220/60/1) FZ(220-240/501) TZ(400/50/3, 440/60/3) KZ(220/50/3, 220/60/3)
| 1. Stator | No Letter = Single-phase, T = three-phase |
| 2. Family | FH Family |
| 3. Application | 2 = Low temperature, 4 = High temperature application |
| 4. Capacity | Number of digits of Cooling Capacity |
| 5. Capacity | First two digits in Rating Point Capacity at 60Hz |
| 6. Refrigerant | Z = R-404A/R-507, T/F = R-22, Y = R-134a |
