Cooling for a Better Tomorrow!

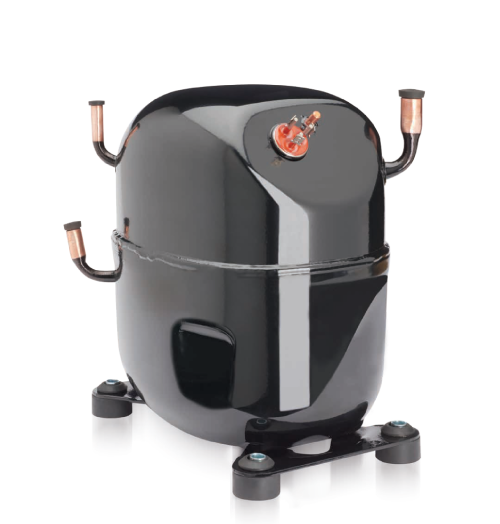

Compressor > AJ²

AJ²

Product Description

Following on the path of its predecessor,
the AJ² delivers best-in-class efficiency,
a wider range, a smaller size envelope,
in addition to Tecumseh’s standard for reliability.


  • Low Noise
    Re-designed housing and suction/discharge muffler system
    lowers the overall sound level.
  • Performance
    Re-designed valve plate and refrigerant gas handling result in
    improved compressor efficiency.
  • Compactness
    Re-designed valve plate and refrigerant gas handling result in
    improved compressor efficiency.
1

C
2

AJ
3

4
4

4
5

92
6

Y
7

FZ

1. Stator No Letter = Singl-phase, C= Single-phase high starting torque, T= Three-phase
2. Family AJ Family
3. Application 2 = Low Temperature, 4 = High Temperature Application
4. Capacity Number of Digits of Cooling Capacity
5. Capacity First 2 Digits in Rating Point Capacity at 60Hz
6. Refrigerant Z = R-404A/R-507, T/F = R-22, Y = R-134a
7. Voltage FZ = 220-240/50/1
