Compressor > AE²

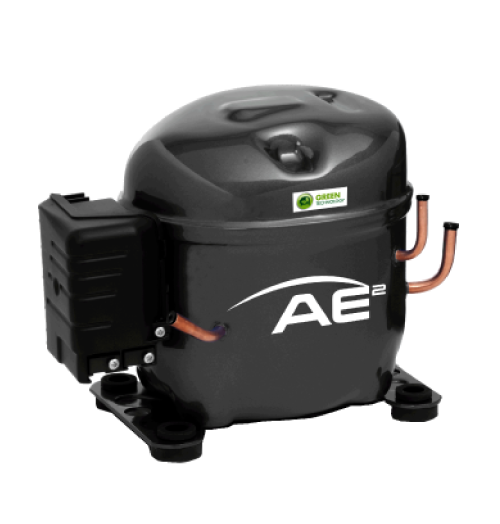

AE²

Product Description

Developed for high and low temperature commercial application.

Product ranged from 0.15 to 0.5 Horsepower.
Refrigerant : R404A/R507 R290 R1234yf/R134a
Voltage : FZ(220-240/50/1) AA(115V/60/1) GS(220V/50-60/1)


The AE² has a wider capacity in a smaller envelope.
The legendary compressor is also redesigned to reduce energy consumption and also
made environmental friendly while maintaining its reliability.

  • Reduced energy consumption
  • Wider capacity in a smaller envelope
  • Environment friendly
  • Backed by Tecumseh’s service and support
  • Product offering
1

AE
2

4
3

4
4

25
5

Y
6

FZ
7

1A

1. Family AE Family
2. Application 2 = Low temperature, 4 = High temperature application
3. Capacity Number of digits of Cooling Capacity
4. Capacity First two digits in Rating Point Capacity at 60Hz
5. Refrigerant Z = R-404A/R-507, T/F = R-22, Y = R-134a
6. Voltage FZ = 220-240/50/1
7. Efficiency 1 = Induction Run, A = Standard Efficiency
