Condensing Unit > Acepack with Variable Speed Drive

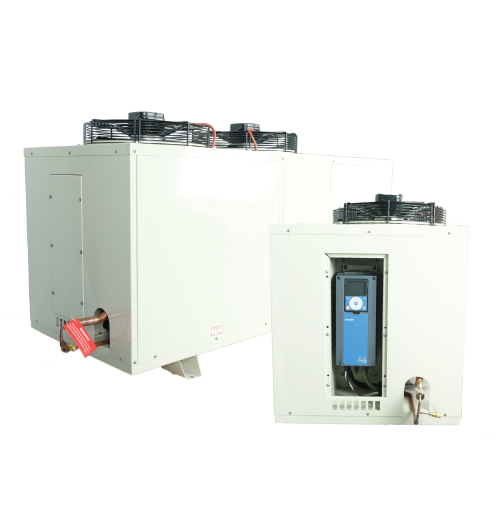

Acepack with Variable Speed Drive

Product Description

Developed for medium/high and low temperature commercial application.

Product ranged from 3.6 to 6.7 kW (HMBP) and 1.5 to 14.5 kW (LBP)
Refrigerant : R-404A/R-452A/R-448A/R-449A and R-134a/R-513A
Voltage : XG (380-420V/50Hz~3, 460V/60Hz~3)
Frequency range : 30 to 60 Hz


  • Quick and easy to install and commission
  • Control the refrigeration systems to match the system load at all times,
    resulting in energy and cost savings
  • Pre-programmed to enable fast commissioning and trouble free operation
  • Oil management speed up feature will ensure oil return is always maintained
1

ACE
2

6.0
3

ML
4

2
5

-1
6

VSD

1. Family Condensing Unit Family
2. Capacity Capacity in kW (50Hz) ambient 32ºC, Evaporating temperature of -5ºC
3. Application Medium/low temperature
4. Fan Motor Number of fan motor(s)
5. Version Condensing Unit Version
6. VSD Variable Speed Driven
